Solar Connector

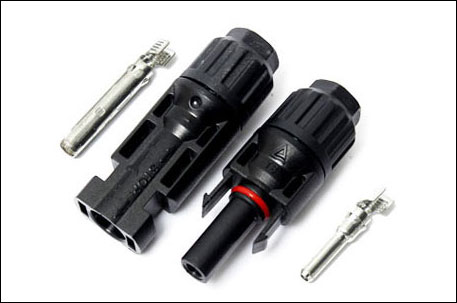

PHOTOVOLTAIC SOLAR PANEL CONNECTOR

JAINSON Group started its Industrial activity on a minuscule scale during the critical stage of manufacturing metal components for electrical industries. Customer satisfaction was the catchword in the industrial philosophy of the group.

Continued support from the customer & equal reciprocation by group by way of maintaining high level of customer satisfaction, saw the group maintain a sustained progress in all its activities.

With liberalization of economy and globalization of engineering industry, potential market for Cable Accessories has shown upward trend. This has motivated us at JAINSON Group to introduce new product like PHOTOVOLTAIC SOLAR PANEL CONNECTOR. These products have been well accepted by our customer.

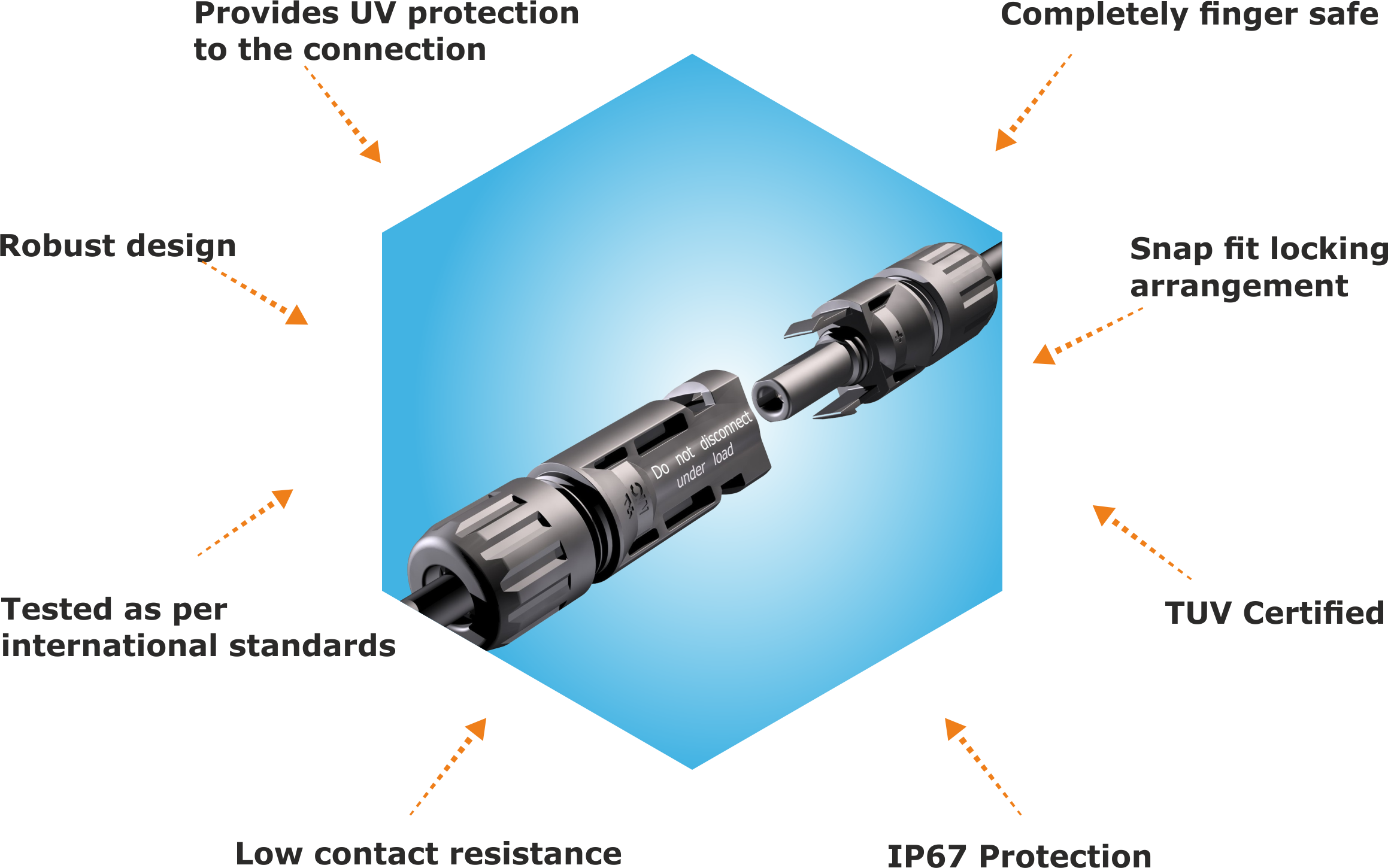

Salient Features For MC4 Connector

MC4 Solar Connector Technical Specification

Description Specification
Rated Voltage 1000V DC
Rated Current 25A(2.5 mm2), 30A (4.0mm2, 6.0mm2)
Test Voltage 6KV (50HZ)
Degree Of Protection IP 67
Contact Material Copper With Tin Plating
Operating Temperature - 400C To 850C
Safety Class II
Contact Resistance <0.5mΩ
Insertion Force < 50 N
Withdrawal Force > 50 N
Suitable Cable 2.5 mm2/4 mm2/6 mm2
Locking System Snap In
For more details click here to download the brochure and price list
